2Cm middle speed Equipment Cooling Fans PBT sleeve 20mm X 20mm X 10mm
12V 2cm lmiddle speed PBT sleeve and ball bearing low price 20mm X 20mm X 10mm
| Model | Bearing Type | Rated Voltage | Operating Voltage | Input Current | Input Power | Speed | Max Air Flow | Max Static Pressure | Noise | Weight |
| Part No. | B.S | VDC | VDC | Amp | Watt | RPM | CFM | m3/min | Inch-H2O | pa | dB-A | g |
| MX2010AB(S)H5 | B.S | 5 | 2.8-5.5 | 0.13 | 0.65 | 15000 | 1.25 | 0.04 | 0.14 | 35.01 | 27.00 | 5.00 |
| MX2010AB(S)M5 | B.S | 5 | 2.8-5.5 | 0.10 | 0.50 | 10000 | 0.73 | 0.02 | 0.05 | 11.77 | 22.00 | 5.00 |
| MX2010AB(S)L5 | B.S | 5 | 2.8-5.5 | 0.07 | 0.35 | 8000 | 0.42 | 0.01 | 0.04 | 8.73 | 21.00 | 5.00 |
| MX2010AB(S)H1 | B.S | 12 | 7.0-13.8 | 0.07 | 0.84 | 20000 | 1.70 | 0.05 | 0.24 | 60.90 | 30.00 | 5.00 |
| MX2010AB(S)M1 | B.S | 12 | 7.0-13.8 | 0.50 | 0.60 | 15000 | 1.25 | 0.04 | 0.14 | 35.01 | 27.00 | 5.00 |
| MX2010AB(S)L1 | B.S | 12 | 7.0-13.8 | 0.03 | 0.36 | 10000 | 0.73 | 0.02 | 0.05 | 11.77 | 22.00 | 5.00 |

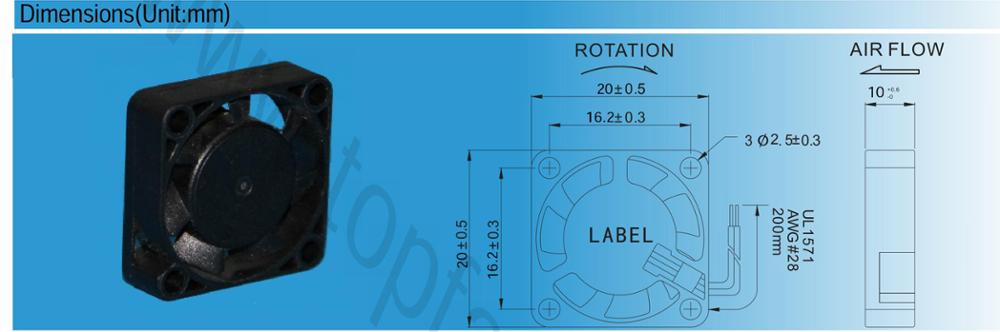

Specifications : 20 * 20 * 10 mm axial fan
Model : 20MM axial fan
Brand : MX
Manufacturer : Shenzhen Topfan Technology Development Co ., Ltd .
Rated voltage : DC 2 . 4V 3 . 3V 5V
Operating voltage range : 2 - 3 . 3V 2 . 5 - 3 . 3V 4 - 5 . 6V
Rated current : see specification
Rated power : see specification
Bearing Category : SLEEVE / BALL
Rotating speed : see specification
Fan life : SLEEVE : 1 - 1 . 25 million hours BALL : 3 - 5 million hours
Fan Category : Axial Fan DC Fan Brushless Fan Miniature Fan
Blade rotation direction : From the blade direction , counterclockwise rotation
Frame material : PBT + 30 % glass fiber + flame retardant
Operating temperature : - 25 ℃ - 75 ℃
Resistance : 500 megohms or more
Wires : The corresponding wire can be configured according to customer requirements , the length of heart
Terminals : According to the specific requirements to add standard terminals , special terminals need to provide or negotiate with us
Optional additional signals : RD signal FD signal PWM signal
Additional protection functions : moisture - proof , waterproof IP55 IP68
Quality Certification : CE ROSH
Packing : Special high - strength carton packaging
Features : Brushless DC Low - power low noise long life ultra-thin ultra-thin axial fan
